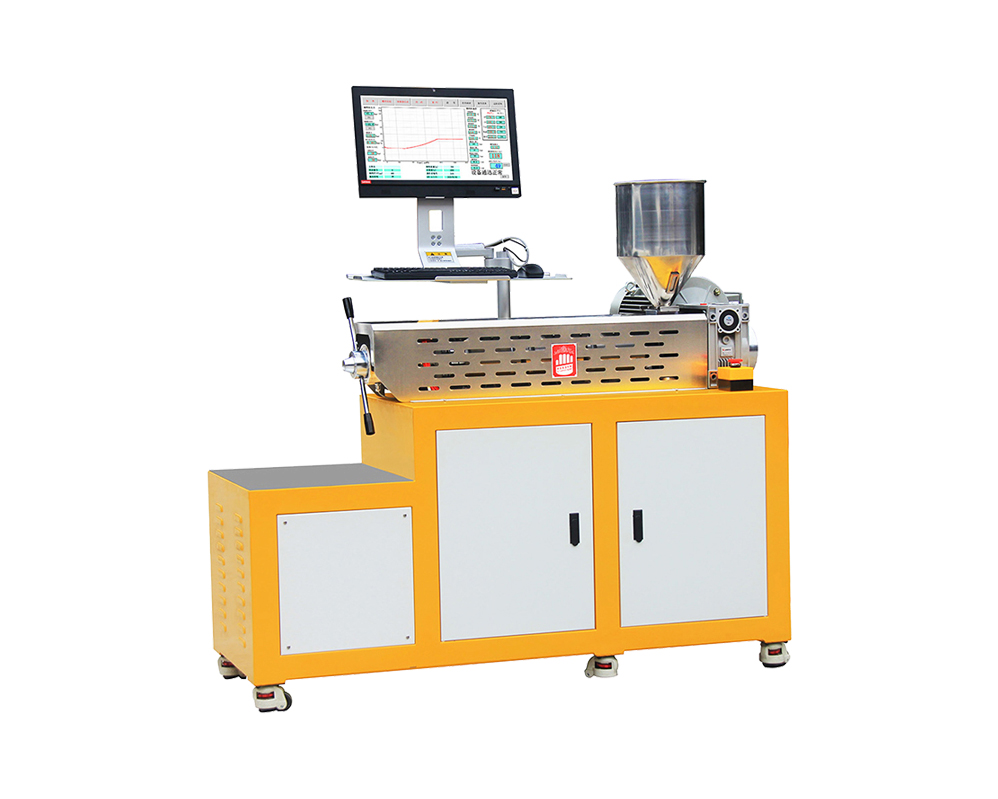

XH-431 过滤性测试机 XH-431 Filter testing machine
简介：本机适用于高分子材料以挤出压滤方式测试颜料、添加剂及色母粒等聚合物的分散性能。
Introduction: This machine is suitable for testing the dispersion performance of polymers such as pigments, additives, masterbatches by extrusion and pressure filtration.
应用范围：Application
填充功能母粒新产品研发与配方优化
Research and development of new products and formula optimization for filling functional masterbatch
测试颜料色母粒及其他填充物的分散性Testing the dispersibility of pigment, masterbatches and other fillers
颜料色母粒质量检验与控制Quality inspection and control of pigment masterbatch
熔体体积流率的高精度计量High precision measurement of melt volume flow rate
熔体泵前、泵后熔体压力的精确测量Accurate measurement of melt pressure before and after the melt pump
技术参数(Technical Parameters)：
型号 Model No. | XH-431-EN | XH-431-ASTM |
控制系统 Control system | 品牌电脑 人机界面 Computer Control | |
螺杆直径 Screw diameter | 20、25、30mm可指定(or customized) | |
主电机功率 Main motor power | 4kW或指定 | |
长径比 L/D | 28：1 | |
螺杆转速 Rpm Screw speed | 0-95rpm变频调速 | |
熔体泵 Melt pump | 台湾品牌 Taiwan brand | _ |
压力传感器 Pressure sensor | 0-35Mpa进口品牌 | |
滤网 Filter | 参照EN13900-5:2005标准 According to EN13900-5:2005 standard | 参照 ASTM 标准 According to ASTM standard |
体积mm（W×D×H） Outside dimension | 1553×650×1350mm | 1553×650×1350mm |
重量(kg） Weight | 约350kg | 约300kg |
电源 Power Supply | 3∮，AC380 | 3∮，AC380 |
特殊型号可根据客户要求设计制作。
Special extruder can be designed according to the requirements of customers.
